Leadconn(Flexible Flat Cable)

RoHS

Leafconn (Flexible Flat Cable)

content-product
LEAFCONN is general term for Flexible Flat Cable by TOTOKU

Leafconn is a connecting lead wire best suited for internal wirings of electronic apparatus.

It is used for connectors between circuit boards and for connectors of circuit boards to electronic parts in electronic apparatus such as printers, copying machine, stereo players, TV sets, video tape recorders, telephone sets, etc. it is highly economical and reliable.

detail

Features

[Standard type]

  • Has excellent economic efficiency compared to Flexible Print Circuit (FPC) because using PET Film
  • Highly flexible, and durable against repeated bending
  • Various length and number of conductors available by request
  • Since the cable itself can also be used as the connector contact
  • As the rectangular conductor is better in heat radiation than the round one, current capacity can made greater per given sectional area
  • It can be used in any bent form
  • Saving the wiring space, it increases the packaging density

[Gold-plated type] (Finepitch Purpose)

  • High wire-connecting finepitch (below 0.5mm) reliability without producing whiskers
  • Excels in contact stability for use with a connector

■Applications

Lead wires for the connection between printed circuit boards and for the connection of the boards with electronic parts within electronic apparatus such as printers, copying machines, stereo players, TV sets, video tape recorders, telephone sets, fax machines, etc.

Standard Type

Gold Plating Type

Shielded

image-detail

Forming Type

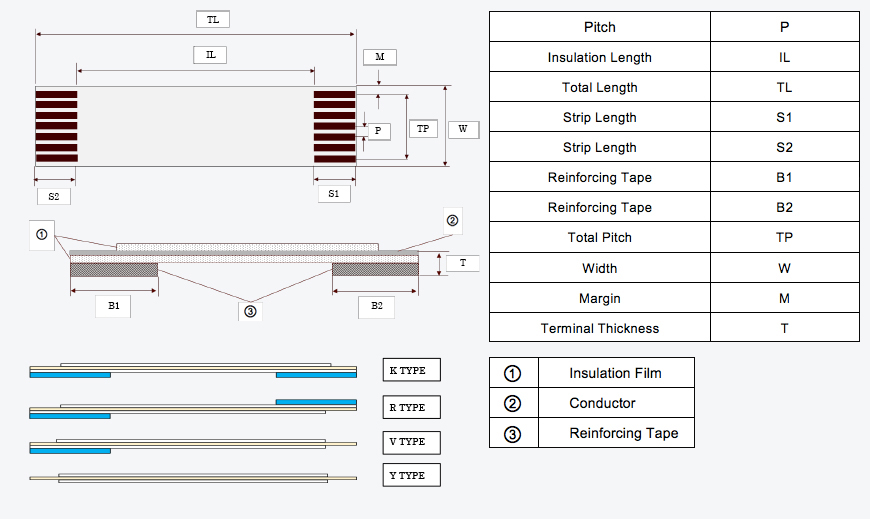

Dimension

detail-dimension

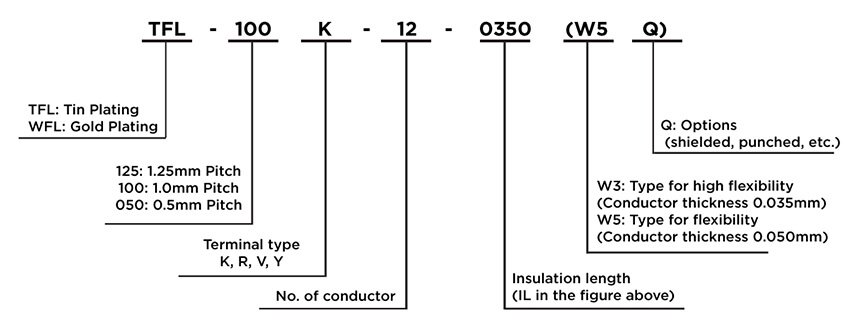

製品形式　Standard Marking System

detail
Flexible Flat Cables are available in Indonesia. Please contact PT. TOTOKU INDONESIA
directly via Contact Form or by calling the following number.

PT. TOTOKU INDONESIA Address

Kawasan Berikat PT. Besland Pertiwi, Blok A-II No.29 ST-4, I & J,
Kota Bukit Indah, Desa Dangdeur, Kec. Bungursari, Kabupaten Purwakarta 41181,
Jawa Barat
Telp. 0264-351978, Fax. 0264-351982
